Elight SHR IPL Multifunctional Hair Removal Beauty Machine

Unique IPL Elight device with LED screen

Provides 5 filters with intelligent recognition, this handle can cover all the following functions:

– 480nm: Acne

– 530nm: Anti-aging Redness Spots

– 590nm: Anti-aging Whitening, stains and dullness

– 640nm: Hair removal Wrinkle Carbon peeling

– 690nm: Black skin hair removal Child hair removal Beard hair removal



Intelligent recognition of the only 100% unique chip and filter on the market!

3 treatment heads with 5 replaceable filters

Big chip: 16*60mm

Medium tip: 16*35mm

Small chip: 16*20mm

LED screen SHR IPL Technical Sheet

Specifications	LED screen IPL	LED screen SHR
Lifespan	1 million shots	1 million shots
Power	1500W	1500W
Spot Size	Standard:16*60mm,16*35mm,Optional:16*20mm	Standard:16*60mm,16*35mm,Optional:16*20mm
Wavelength	standard: 480nm 530nm 640nm, Optional:560nm 690nm	Fixed 640-1200nm
Energy Density	1-50J/cm2(without filter)	1-25J/cm2
Pulse Frequency	1-6Pluse in IPL mode, 1-10Hz in super mode	1-10Hz
Pulse Duration	1-8ms	1-10ms
Pluse Delay	1000-3000ms	/
Lamp	OEM lamp	OEM lamp
Cooling Level	Sapphire Crystal + Air + Closed Water Circulation + Semiconductor +TEC
Display	15.6 inch True Color LCD touchable Screen
Continue Working	Continuous stand-by working for 10-12hours
Electrical	100/110V, 50~60Hz, /230V~260V,50~60Hz
Net Weight	35KG
Packing Dimension	65*60*49cm (W*D*H)

E-light can be said to be a multi-functional machine. It is a basic model for beginners. Because it is equipped with 5 filters, it can meet the daily needs of the salon, and the price is relatively cheap. E-Light machine can do Acne, pimples, acne marks, superficial pigmentation, freckles, sun spots, age spots and superficial pigmentation, skin rejuvenation, redness, red face, rosacea, hair removal, and wrinkle removal.

What is E-light?

E-light = IPL+RF; E-light technology is a perfect combination of light energy and radio frequency energy. The core technology mainly has three points: radio frequency + light energy + surface cooling. It uses the selective absorption of light energy by the skin to cause the impedance difference between the target tissue and normal skin and strengthens the absorption of radiofrequency energy by the target tissue when the light energy intensity is low, greatly eliminating the possibility of thermal effects caused by excessive light energy. It causes side effects and improves customer comfort. The treatment depth of traditional IPL equipment only reaches 4mm under the skin. With E-light technology, it can reach 15mm under the skin, greatly increasing the treatment range.

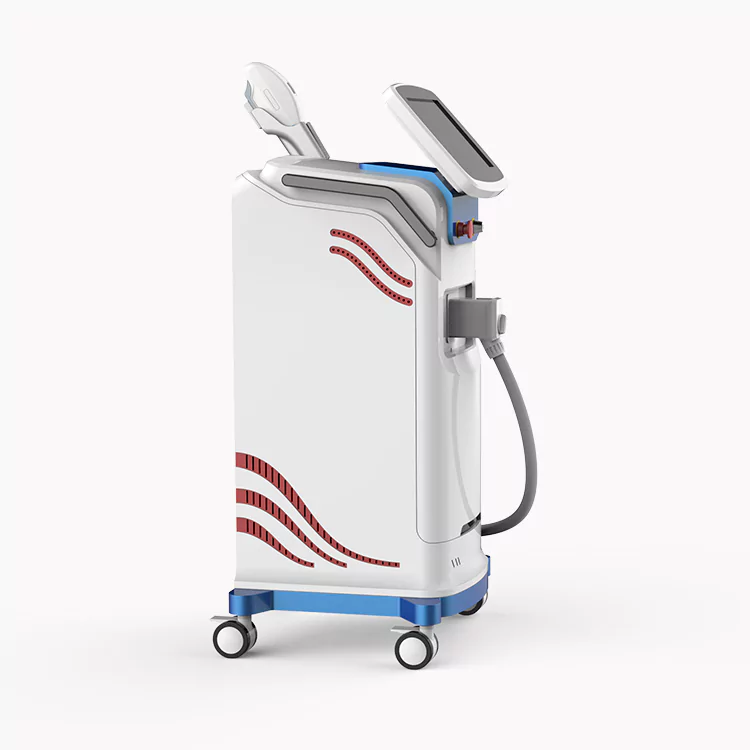

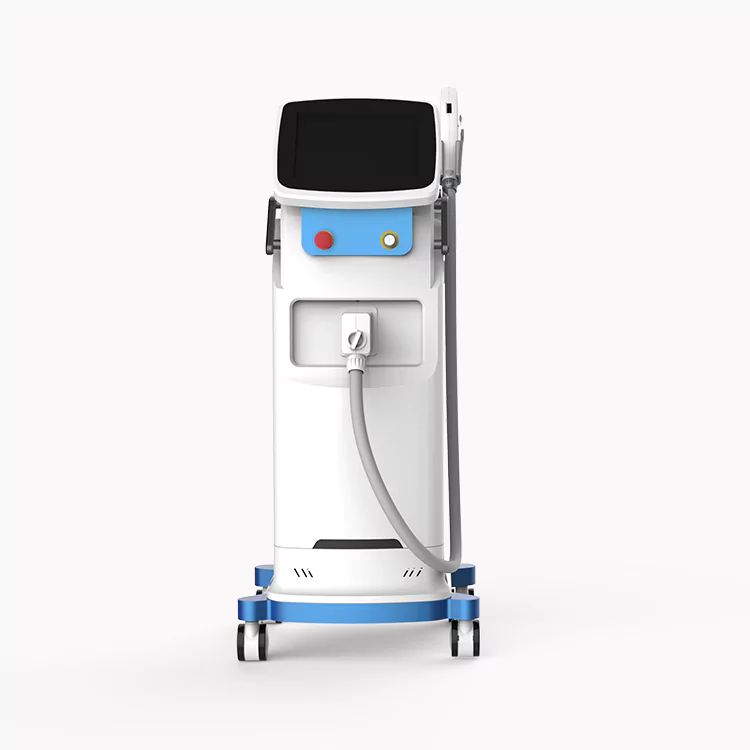

Real machine display

Very easy to start! Very friendly for new users!

1. wavelength choose

Elight comes with 5 filters, which are plug-in cards. Just insert the corresponding filter according to the function you need.
, the interface will prompt new users which filters will provide what functions.
480nm: Acne Treatment
530nm: Vascular Treatment
590nm: Pigment Treatment
640nm: Fair Skin Depilation
690nm: Dark Skin Depilation

2. Different work mode

S is the fast mode, the frequency is 1~10hz
When you don’t have enough time to do treatment, you can choose S mode, which can be completed quickly. Or when you have many customers waiting, you can choose S mode to reduce the waiting time of customers.

N is the normal mode, the frequency is 1~6hz

On the contrary, if you have a lot of time for treatment, then you can choose to use N mode, and the effect will be better, or if you currently have few clients waiting, then you can seriously use N mode for treatment.

3. Initial parameters

An initial parameter is equivalent to a reference parameter. Click standby directly. You can directly use this safe parameter for treatment.

LED screen SHR handle

3 different size treatment tip

SHR treatment tips of different sizes can meet the hair removal needs of different parts of the body. For large-area hair removal, use a large-area treatment tip, and for small-area hair removal, use a small-area treatment tip.

For example, for leg hair removal and back hair removal, it is more suitable to use a large size 16*60mm. For hair removal around the lips of women and around the beard of men, it is more suitable to use a small-size hair removal. It is no longer a fixed size, which is particularly limited. 3 different-size treatment tips are more flexible and convenient during use.

Big LED screen on SHR handle

Design LED screen on SHR handle, it is more nicer, and more convenient. It is people’s pursuit of modern design, and they prefer products with a strong sense of technology, which are more high-end, more beautiful, and more popular. During use, the parameters can be adjusted directly through the LED screen handle, which is faster and more efficient. All parameters can be adjusted through the BIG LED screen! No need adjust parameter on machine screen any more!

360° Super Cooling

Update TEC cooling part, it is same TEC cooling part with Diode laser machine, it is more nice cooling results. If you are not satisfied with the cooling strength of the old IPL handle, you are welcome to try the newest SHR handle, No.1 cooling results now!

LED screen IPL handle

IPL is with 5 filters, 480nm, 530nm, 590nm, 640nm, 690nm

Put different filter, it will has different functions

480nm  filter is for Acne treatment

530nm filter is for skin rejuvenation

590nm filter is for pigment remove

640nm filter is for yellow skin hair remove

690nm filter is for dark skin hair remove

Intelligent Recognition IPL

Intelligent Recognition the correct treatment tips, this is very convenient, automatically recognizes whether it is a large head, a medium head or a small head, and gives the parameters of the corresponding treatment head, eliminating the trouble of manually setting parameters, saving time and being more intelligent.

The three different sizes of treatment heads also meet the needs of treating different parts of the body, which is more humane and more reasonable

2 working modes

Elight SHR IPL Machine Specification Table

What effects can E-LIGHT achieve?

E-light machines can remove acne pits and acne marks, remove pigmentation, remove red blood filaments, remove chloasma, permanently remove hair, and can also whiten and tighten. For a newly opened beauty salon, E-light machines can meet the initial needs. The secret to the growth of a beauty salon is to be effective. Once your machine is effective, your customers will continue to come to you for treatment. If you have more customers, your business will naturally improve. Then you can own a chain store and open a second, third, and fourth beauty salon all at once. This is what many beauty salons want to see, so choose an effective machine. It’s important, this is the first and most critical step.

You will get the user manual with your package machine

There is no need to worry about not knowing how to use the machine. We will arrange the instructions inside the package. When you open the package, first read the instructions and then watch some operating videos, and then you can operate the machine. If you need help, you can also contact us and we will provide free training! We are not worried that you are a novice, what we are worried about is that you dare not take the first step, take the first step, buy the first machine, and make your dream a reality!
