Diode Laser Nd Yag Laser 2 In 1 Multifunctional Beauty Device
The DPL2 model Diode Laser ND Yag laser 2 in 1 beauty machine produced by China factory combines high-quality ND YAG laser for tattoo removal mole removal, pigments therapy and laser diode for hair removal and skin rejuvenation.
The treatment carried our by this professional diode laser nd yag 2 in 1 machine is fast, safe and effective. We offer pre-set parameters for different therapies in different areas for starter salons.
Machine Model: DPL2F-BH+ND Yag
Beauty System Type: Multi function Beauty Equipment 2 in 1 Laser
Suitable For: Professional beauty salons, clinics, medical centers
Certificates: FDA, Medical CE, CE, RoHS, ISO 13485
2 In 1 Device Handle Details
Diode Laser BH System
2nd Generation big spot diode laser handle adopts US Coherent laser bars (which is the same brand with German Dilas, the best brand for diode laser stacks), guarantees a 20 million shots lifespan and an extraordinary 4-5 years of your normal use. The painless and permanent effect is guaranteed.
Unique 2 in 1 Spot Size, suitable for both women and men for full body hair removal:
- 15*30mm diode laser tip for large area hair removal, like back, chest, leg, armpit hair removal etc
- 15*10mm diode laser tip for small area hair removal, like lip, finger, bikini hair removal etc
Also with below features:
- Power: 800W 1000W 1200W Optional
- Laser Stack: 100W/ bar, pure AuSn laser bars from US Coherent
- Wavelength: 808nm and 755nm 808nm 1064nm mixed 3 in 1 wavelength
- Fast Hair Removal: Up to 10 flashes each second greatly shorten the treatment time (full back 20 minutes)
ND Yag Laser System
The ND Yag Laser system will come with 3 treatment tips:
Upgraded to 3 replaceable treatment tips:
- 532nm: mainly for red and brown pigmention treatment, such as of epidermal pigmentation, freckles, solar lentiges, epidermal melasma, etc
- 1064nm: mainly for black and blue pigmention treatment, such as tattoo removal, dermal pigmentation, Nevus of Ota, Hori’s Nevus etc
- 1320nm: Non-ablative Laser Rejuvenation (NALR-1320nm) using carbon peel for skin rejuvenation
Also with below features:
- Super long lifespan of 3 million shots
- Xenon lamp from UK. Yag bar size Ø6
- Energy: Up to 1600mj standard (Other similar machines only to 1000mj)
- Frequency: 1-10hz fast treatment
High Quality Parts We Use
- 2000W power supply for diode laser system, 2000W power supply for E-light (IPL SHR E-light) system, 500W power supply for ND yag laser system, 100W power supply for RF system
- Double Korea imported water filters, to filter out the impurities and ions from water, so that can protect our US Coherent laser bars and UK imported xenon lamp very well, thus can greatly prolong the lifepsan of machine.
- 2 thickest aluminum radiators plus 4 big fans to ensure the excellent heat dissipation effect. Heat dissipation system is very important for the lifespan and quality of the machine.
- Copper radiator V.S. Alum radiator: some companies may use the copper radiator and say copper radiator is better. That is a huge mistake, indeed copper has better heat conductivity, but it also produce copper rust which is easy to pollute the water and burn the xenon lamp.
- 2*22000uf big capacitors imported from Japan for the E-light system; 120uf capacitor for the nd yag laser system.
- 8L stainless water tank
- Latest brushless DC water pump, with lift 15m. Compare with the outdated magnetic drive pump, the brushless DC pump we use has much lower noise and much higher water flow speed. High water flow speed means it can take away the heat very quickly and protect the machine.
- Schneider switches
Specification
| SPECIFICATIONS | DIODE LASER | ND: YAG LASER |
|---|---|---|
| Lifespan | 20 million shots | 3 million shots |
| Power | 1200W for laser, 3000W for power | 800W |
| Spot Size | 15*30mm & 15*15mm | 1-10mm |
| Wavelength | 808nm / Triple (75 5+808+1064) | 532/1064/1320nm |
| Energy Density | 1-166J/cm2 | 1000mJ/cm2 |
| Pulse Frequency | 1-10Hz | 1-10Hz |
| Pulse Duration | 10-300ms | 20-30ns |
| Laser Bars/ Lamp | US Coherent laser bars | Φ6 + UK Xenon lamp |
| Cooling Level | Sapphire Crystal + Air + Closed Water Circulation + Semiconductor +TEC | |
| Display | 10.4 inch True Color LCD touchable Screen | |
| Stand-by Working | Continuous stand-by working for 10-12hours | |
| Electrical | 100/110V, 50~60Hz, /230V~260V,50~60Hz | |
| Gross Weight | 65KG | |
| Packing Dimension | 63*60*116cm (W*D*H) | |
Before & After
Smart Software
Our machine is very easy to operate. The software is designed by our engineer with preset therapy parameters and even starters can use it so easily!
- Intelligent operating system
- Pre-set parameters Treatment records saving
- 15 Languages available
- Monitoring system
- Alarming system
- Renting mode
- Saving client treatment data
Alarming System includes 5 parts:
- Water level alarming
- Water temperature alarming
- Water flow speed alarming
- Water impurity alarming
- Handle button status alarming
For example, if water filter is too dirty need to be change, the water flow speed will alarm to remind you change water filter.
If machine can not Standby, handle button status will remind you need to release the handle button first.
In shot, this is a very easy system for clients
Spare Parts Monitoring System makes after-sales job much easier and much faster.
Here i explain how it will help:
There are 5 lines, each line stands for a specific part in the machine.
- S12V stands for control voltage
- D12V stands for control board
- DOUT stands for cooling system
- S24V stands for water pump
- L12V stands for constant current power supply
In case there is any problem in the future, you can firstly check this monitoring system to know which part is wrong, and then we can send new parts accordingly very fast.
We also have this really useful Client Treatment Record Saving System.
Every patient has different skin tone and hair type. Even patients who have similar skin and hair type, they may have different tolerence about pain.
So when doing treatment to a new client, Doctor usually has to try from low energy in patient skin and gradually higher, find the most suitable parameter for this specific patient.
Our system allows Doctor to save this most suitable parameter for this specific patient to our Treatment Record Saving System. So that next time when this patient come again, Doctor can directly searching for his or her well tested parameters and start treatment quickly.

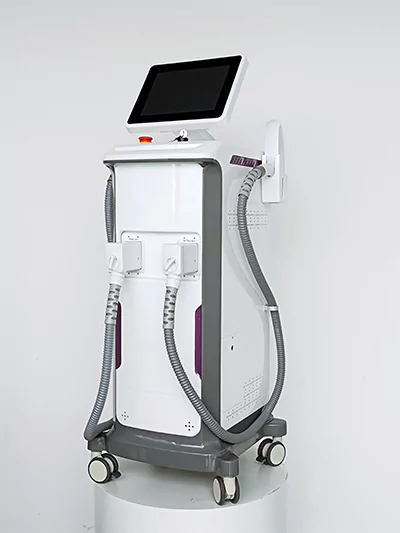

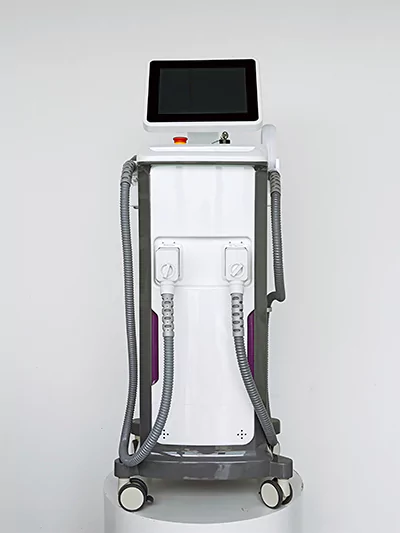

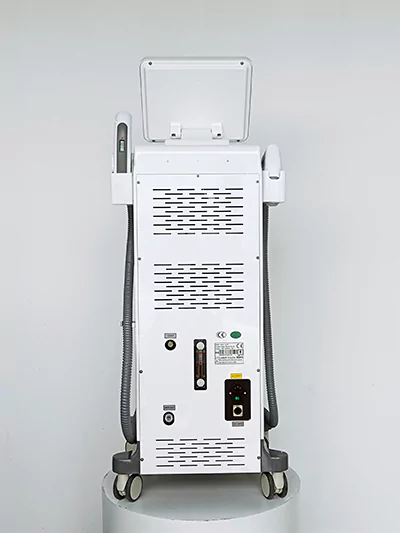

Machine Photos
Get Best Price
Diode Laser ND Yag for Hair Removal and Skin Rejuvenation
