4 in 1 Laser Multifunctional Beauty Machine Diode ND Yag Elos RF

World’s first 4 in 1 laser with 10 functions, Diode Laser + ND Yag Laser + E-light OPT SHR + RF. It is the ultimate choice for any professional beauty salons and clinic! The best and most advanced 4 in 1 beauty equipment to meet all your demands!

Machine Model: DPL4E-DH

Beauty System Type: Multi function Beauty Equipment 4 in 1 Laser

Suitable For: Professional beauty salons, clinics, medical centers

Certificates: FDA, Medical CE, CE, RoHS, ISO 13485

Or

More Details

Highlights Of 4 In 1 Laser

Most advanced technology 4 in 1 multifunctional beauty machine, combine diode laser 808nm, q switched nd yag laser, E-light and RF together!
Independent power supply for each system, ensures stable and excellent performance
Advanced monitoring system, safe and convenient
10 languages available. Intelligent interface, easy to operate.
Equipped with Two filters for longer lifespan

What Treatment Can 4 In 1 Laser Do?

This 4 in 1 laser combines 4 systems to 1 machine. With 1 machine, it covers all below functions:

Laser hair removal
Acne treatment
Photo rejuvenation
Skin whitening
IPL hair removal
Pigmentation treatment
Vascular removal
Tattoo removal
Mole removal
Carbon peeling
Wrinkle removal
Body lifting

4 In 1 Laser Handles Details

Diode Laser DH System

4th Generation smart and light diode laser with 2 spot sizes:

15*15mm hair removal tip for full body like back, arm, leg, armpit, public, facial, lip, hairline etc hair reduction treatment.
8mm hair removal tip for nose and ear hair removal.

Latest generation high technology, very afforable price with a lot fancy technologies. Definetly will be the best choice for the comprehensive beauty salons!

20% higher power than the classical diode laser, more effecient!
Intelligent recognition of the smart tips, with pre-set parameter for different tip
Real-time treatment tip temperature monitoring, skin under 100% good protection
Smart LED screen easy operation allows to adjust parameters from handle
360° Super cooling, always keep around -4℃ even during long time treatment
Light-weighted handpiece, relief from the sore arm

ND Yag Laser System

The ND Yag Laser system will come with 3 treatment tips:

Upgraded to 3 replaceable treatment tips:

532nm: mainly for red and brown pigmention treatment, such as of epidermal pigmentation, freckles, solar lentiges, epidermal melasma, etc
1064nm: mainly for black and blue pigmention treatment, such as tattoo removal, dermal pigmentation, Nevus of Ota, Hori’s Nevus etc
1320nm: Non-ablative Laser Rejuvenation (NALR-1320nm) using carbon peel for skin rejuvenation

Also with below features:

Super long lifespan of 3 million shots
Xenon lamp from UK. Yag bar size Ø6
Energy: Up to 1600mj standard (Other similar machines only to 1000mj)
Frequency: 1-10hz fast treatment

E-light IPL SHR System

Our E-light system will come with 5 changeable filters with different functions:

480nm~1200nm: Acne treatment
530nm~1200nm: Vascular treatment, photofacial for light skin.
590nm~1200nm: Pigmentation treatment, photofacial for dark skin.
640nm~1200nm: Hair removal for light skin
690nm~1200nm: Hair removal for dark skin

Also with below features:

Super long lifespan of 1 million shots (Amazing lifespan! Our competitor’s IPL only 300,000 shots, much shorter than ours!)
Xenon lamp from UK
Spot size: 15*50mm or 12*30mm
Working modes: SUPER mode 1-10 hz in 1 second and IPL mode 1-6hz in 1 second.

Radio Frequency System

RF-lifting skin tightening is a modern treatment based on radio waves. It’s a safe and effective and does not require downtime

Patients can see skin tightening immediately after treatment. With proper skin care, results can last for two to three years.

Our RF system come with 3 treatment tips:

Small tip: for eye round wrinkle removal
Middle tip: for facial lifting
Big tip: for body lifting

Also with below features:

Different with the cheap RF system, our RF has water cooling ensures more comfortable therapy
10Mhz power for safe operation, never burnt
Unlimited lifespan, no comsumable parts at all!

High Quality Parts We Use In 4 In 1 Laser

2000W power supply for diode laser system, 2000W power supply for E-light (IPL SHR E-light) system, 500W power supply for ND yag laser system, 100W power supply for RF system

Double Korea imported water filters, to filter out the impurities and ions from water, so that can protect our US Coherent laser bars and UK imported xenon lamp very well, thus can greatly prolong the lifepsan of machine.

2 thickest aluminum radiators plus 4 big fans to ensure the excellent heat dissipation effect. Heat dissipation system is very important for the lifespan and quality of the machine.

Copper radiator V.S. Alum radiator: some companies may use the copper radiator and say copper radiator is better. That is a huge mistake, indeed copper has better heat conductivity, but it also produce copper rust which is easy to pollute the water and burn the xenon lamp.

2*22000uf big capacitors imported from Japan for the E-light system; 120uf capacitor for the nd yag laser system.

8L stainless water tank

Latest brushless DC water pump, with lift 15m. Compare with the outdated magnetic drive pump, the brushless DC pump we use has much lower noise and much higher water flow speed. High water flow speed means it can take away the heat very quickly and protect the machine.

Schneider switches

Specification Of 4 In 1 Laser

SPECIFICATIONS	DIODE LASER	E-LIGHT ELOS ESHR	ND: YAG LASER	RF
Lifespan	20 million shots	1 million shots	3 million shots	Unlimitted
Power	600W for laser, 2400W for power	2000W	800W	100W
Spot Size	15*15mm & φ8mm	Standard:1660mm,1635mm,Optional:16*20mm	1-10mm	3 tips
Wavelength	808nm / 755 808 1064 mixed	standard: 480nm 530nm 640nm, Optional:560nm 690nm	532/1064/1320nm	/
Energy Density	1-166J/cm2	E-light: 1-50J/cm2； SHR: 1-26J/cm2	1000mJ/cm2	1-50W
Pulse Frequency	1-10Hz	1-10Hz	1-10Hz
Pulse Duration	10-400ms	E-light: 1-10ms; SHR: 1-15ms	20-30ns	1-10Hz
Laser Bars/ Lamp	US Coherent laser bars	OEM lamp	Φ6 + UK Xenon lamp	/
Cooling Level	Sapphire Crystal + Air + Closed Water Circulation + Semiconductor +TEC
Display	12.4 inch True Color LCD touchable Screen
Stand-by Working	Continuous stand-by working for 10-12hours
Electrical	100/110V, 50~60Hz, /230V~260V,50~60Hz
Gross Weight	75KG
Packing Dimension	6360116cm (WDH)

Smart Interface

Our machine is very easy to operate. The software is designed by our engineer with preset therapy parameters and even starters can use it so easily!

Intelligent operating system
Pre-set parameters Treatment records saving
15 Languages available
Monitoring system
Alarming system
Renting mode
Saving client treatment data

Alarming System includes 5 parts:

Water level alarming
Water temperature alarming
Water flow speed alarming
Water impurity alarming
Handle button status alarming

For example, if water filter is too dirty need to be change, the water flow speed will alarm to remind you change water filter.

If machine can not Standby, handle button status will remind you need to release the handle button first.

In shot, this is a very easy system for clients

Spare Parts Monitoring System makes after-sales job much easier and much faster.

Here i explain how it will help:

There are 5 lines, each line stands for a specific part in the machine.

S12V stands for control voltage
D12V stands for control board
DOUT stands for cooling system
S24V stands for water pump
L12V stands for constant current power supply

In case there is any problem in the future, you can firstly check this monitoring system to know which part is wrong, and then we can send new parts accordingly very fast.

We also have this really useful Client Treatment Record Saving System.

Every patient has different skin tone and hair type. Even patients who have similar skin and hair type, they may have different tolerence about pain.

So when doing treatment to a new client, Doctor usually has to try from low energy in patient skin and gradually higher, find the most suitable parameter for this specific patient.

Our system allows Doctor to save this most suitable parameter for this specific patient to our Treatment Record Saving System. So that next time when this patient come again, Doctor can directly searching for his or her well tested parameters and start treatment quickly.

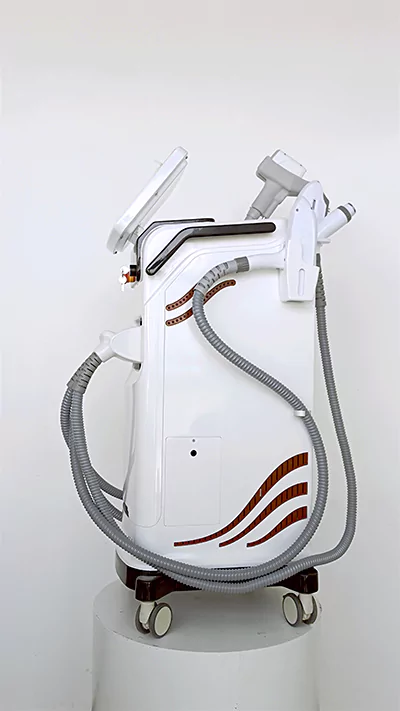

Machine Photos
